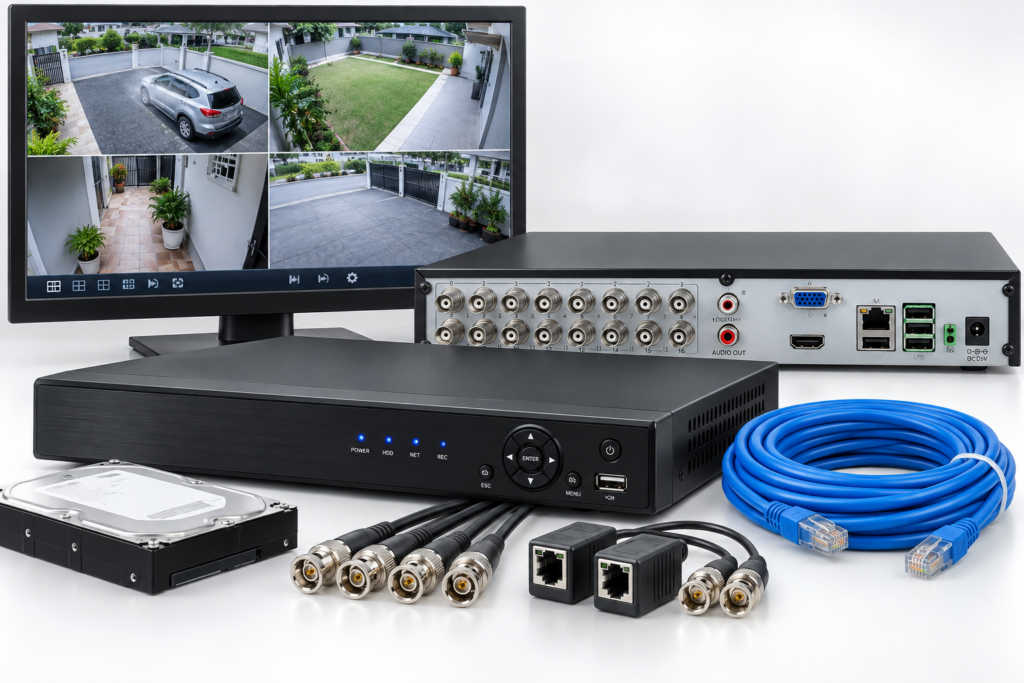

A Digital Video Recorder (DVR) is a core component of analog CCTV systems, serving as the central hub for capturing, processing, storing, and managing video footage. It converts analog video signals from cameras into a digital format, enabling modern surveillance features that go beyond older, tape-based systems.
Key roles of a DVR in a CCTV system:
- Video Recording and Digitization: The primary function is to receive analog video signals from connected cameras (typically via coaxial cables) and convert them into a digital format. This digital data is then compressed (using formats like H.264 or H.265) to maximize storage efficiency and ensure high-quality recordings.
- Data Storage: The digital footage is stored on internal mass storage devices, usually a built-in hard drive. The storage capacity determines how much footage can be retained before the oldest data is automatically overwritten.
- Video Management and Playback: DVRs provide an interface for users to manage their surveillance data efficiently. Features include:
- Searching: Easily finding specific footage based on time, date, or events (like motion detection triggers).
- Playback Control: Offering VCR-like controls such as play, pause, rewind, and fast-forward, but with the added convenience of instant searching.
- Exporting: Backing up specific footage to external storage devices (like a USB flash drive or DVD) for archival purposes or evidence.
- Advanced Features: Modern DVRs often include advanced video management software capabilities such as:
- Motion Detection: Automatically triggering recording or sending alerts when motion is detected in the camera’s field of view, which saves storage space and highlights critical events.
- Scheduled Recording: Programming the system to record continuously, only during specific times, or only when an event is triggered.
- Remote Access: Many DVRs can connect to a local area network (LAN) or the internet, allowing users to view live feeds and recorded footage remotely via smartphones, tablets, or computers from anywhere in the world.
- Centralized Control: The DVR acts as the central control unit for multiple cameras, typically supporting 4, 8, 16, or 32 cameras depending on the model.
In essence, the DVR transforms raw analog video feeds into a sophisticated, easily manageable, and accessible security surveillance system.
